UNIQUE, PATENTED REINFORCEMENT STRIP

INCREASED BENDING STIFFNESS

REINFORCED RIB IN WHEEL VICINITY

STRONG BOTTOM

CHIPNEST RAL-CONFORM

STRIP WITH SPRING

ERGONOMIC HANDLE

ERGONOMIC HANDLES

ERGONOMIC HANDLES

COLLECTION BIN

660 L

4 WHEELED BIN SYSTEM

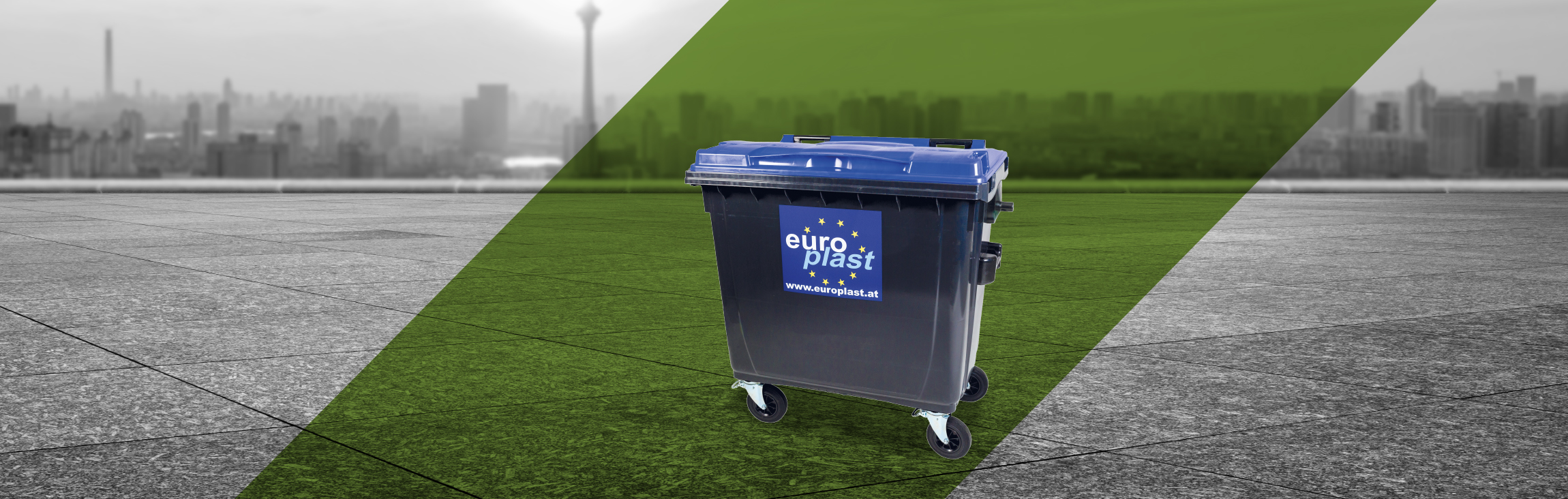

EUROPLAST collection bins made of HDPE (s. image) with reinforced, spring-loaded and patented comb bar. Ideally suited for higher collection volumes with limited available space. With ribbing design for increased rigidity and thoroughly tested thin-wall technology for all DIN comb lifting systems.

Maximum load capacity thanks to front and side corrugation
the unique, patented reinforcement slat: the double slat design results in a significant increase in comb-resistance in the critical range
RAL-compliant chip nest
the sprung slat absorbs the load peaks during the lifting and tipping process
Ergonomic handles
the base of the bin is reinforced in order to be able to stand up to the loads
the corrugation in the wheel area of the bin is additionally reinforced
the bin is optionally available with pedal opening

COLOR COMBINATIONS

produkte/wertstoffsammelbehaelter/4-rad-container/660_L_C/kombinationen
Lid
Hull

For a color combination please select color.

produkte/wertstoffsammelbehaelter/4-rad-container/660_L_C/kombinationen



660 l

NOMINAL VOLUME

+/-5%

36,5 kg

NET WEIGHT

+/- 5%

264 kg

MAX. Fill weight

+/-5%

360 kg

MAX. TOTAL WEIGHT



+ Special openings

+ Closing systems

+ Labelling
